Usage:
Cast Iron T slot angle plates are used as a work-holding devices to clamp and hold workpieces in the vertical position and as a vertical reference for inspection and tooling purposes in machining processes such as shaping, planing, boring, milling, grinding and drilling, etc.
The types of angle plates are available as: T-slotted and plain.


Material:
The angle plates are made of close-grained and stress relieved gray cast iron GG-20, GG-25 or GG-30 upon buyer request.

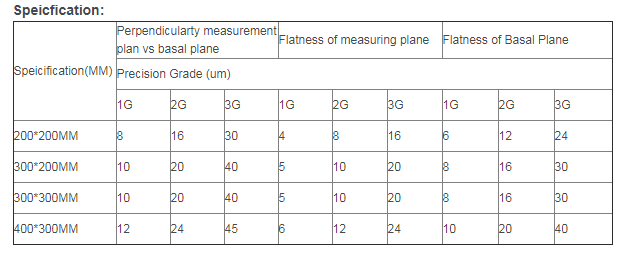

Specification:
Sizes is in the range of HB170-240 and the surface flatness accuracy is available as being Grade I, II or III as per DIN 876 Standards, British Standard and other standards.

Sizes:
Sizes of angle plates are as per customer request. Any sizes can be provided, including very large heavy angle plates used as work-holding device for floor type milling and boring machines.
We frequently supply custom made large and heavy-duty angle plates such as 7000mm x 2000mm x 2000mm or larger ones which are used as work-holding components on large floor type boring machines.
